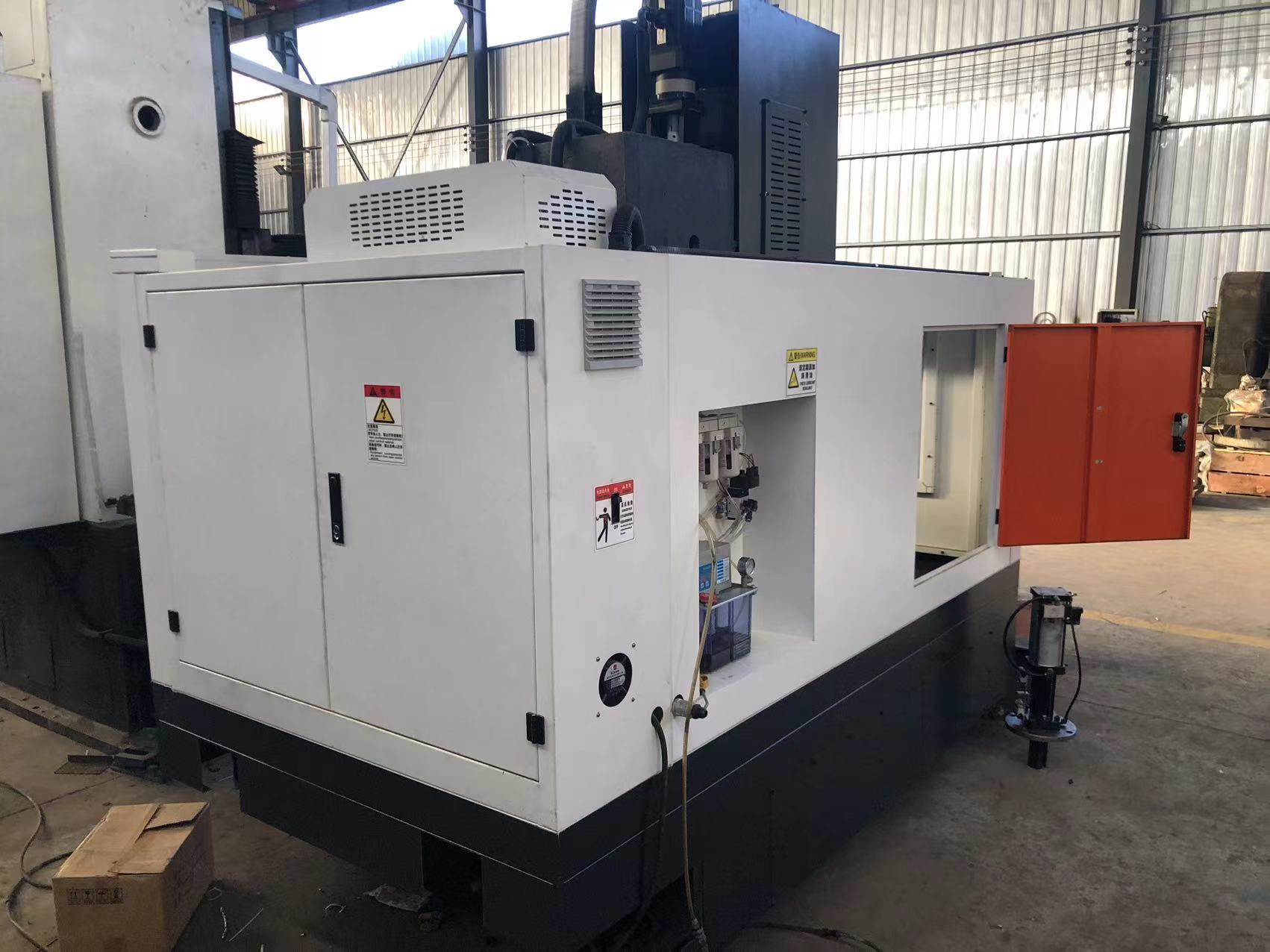

CNC flange drilling machine

Good quality CNC flange drilling machine from China with 5 years warranty

UZ550-2 Dual-station flange special CNC drilling machine

Maximum drilling diameter 10KN 40mm

Maximum feed resistance 100N.m

Spindle model Spindle maximum torque Spindle variable frequency motor power 10Nm BT40*2 7.5kw*2

X-axis servo motor power Z-axis servo motor power 15Nm

Spindle speed range 20-3000 rpm

Worktable speed 1-5 rpm

Fast feed speed (X) 2000mm/min

Fast start speed (Z) 4000mm/min

Z-axis travel (spindle box) 650mm

Pneumatic chuck self-centering

Workpiece installation Worktable diameter 550mm 500mm*2

Cooling type Center distance Processing range Spindle end face to worktable Maximum distance Internal cooling 600mm0mm--550mm

Maximum workpiece diameter

Cooling pump power 1.1KW

CNC system Positioning accuracy XZ) TPK980 0.05/300mm

Re-positioning accuracy XZ) 0.05/300mm

Worktable indexing accuracy Worktable repeat positioning accuracy ±30° ±10°

Worktable load 80KG

Machine tool dimensions (length x width x height) 2400x2300x1800mm

About 4500kg

Machine tool weight

This machine is factory-installed with flange processing macro program. When processing, you only need to enter basic data, such as number of holes, hole depth, center distance, feed rate, etc.

CNC flange drilling machine is good quality prodcut.
