cnc flange machine from China
cnc flange machine from China

cnc flange machine from China

Product ID : cnc flange machine
Product Tags :
Product Attributes :

cnc flange machine

Original: Hebei

Product Description

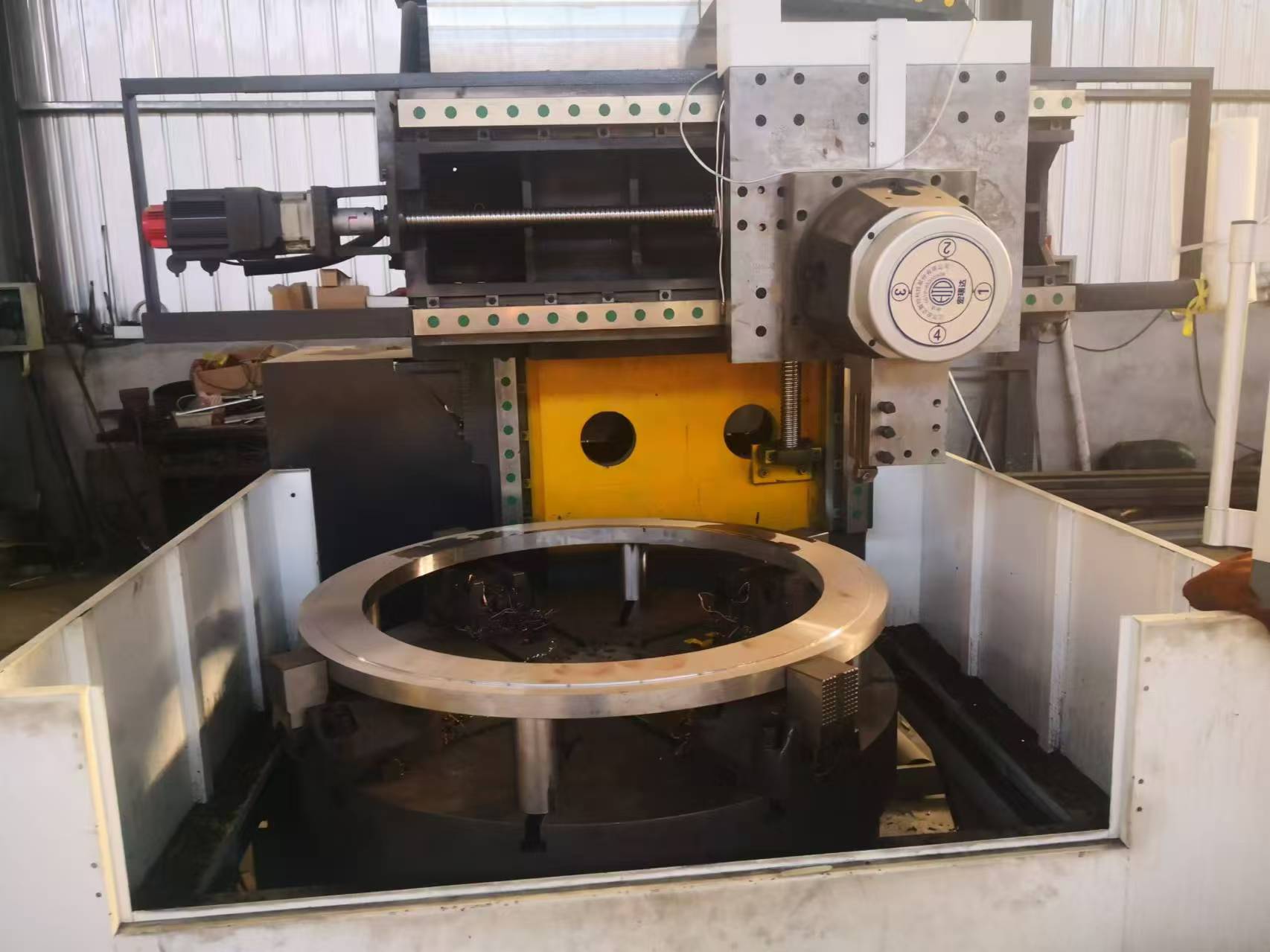

cnc flange machine

UZ550-2 Dual-station flange special CNC drilling machine

Maximum drilling diameter 10KN 40mm

Maximum feed resistance 100N.m

Spindle model Spindle maximum torque Spindle variable frequency motor power 10Nm BT40*2 7.5kw*2

X-axis servo motor power Z-axis servo motor power 15Nm

Spindle speed range 20-3000 rpm

Worktable speed 1-5 rpm

Fast feed speed (X) 2000mm/min

Fast start speed (Z) 4000mm/min

Z-axis travel (spindle box) 650mm

Pneumatic chuck self-centering

Workpiece installation Worktable diameter 550mm 500mm*2

Cooling type Center distance Processing range Spindle end face to worktable Maximum distance Internal cooling 600mm0mm--550mm

Maximum workpiece diameter

Cooling pump power 1.1KW

CNC system Positioning accuracy XZ) TPK980 0.05/300mm

Re-positioning accuracy XZ) 0.05/300mm

Worktable indexing accuracy Worktable repeat positioning accuracy ±30° ±10°

Worktable load 80KG

Machine tool dimensions (length x width x height) 2400x2300x1800mm

About 4500kg

Machine tool weight good cnc flange machine

This machine is factory-installed with flange processing macro program. When processing, you only need to enter basic data, such as number of holes, hole depth, center distance, feed rate, etc.
