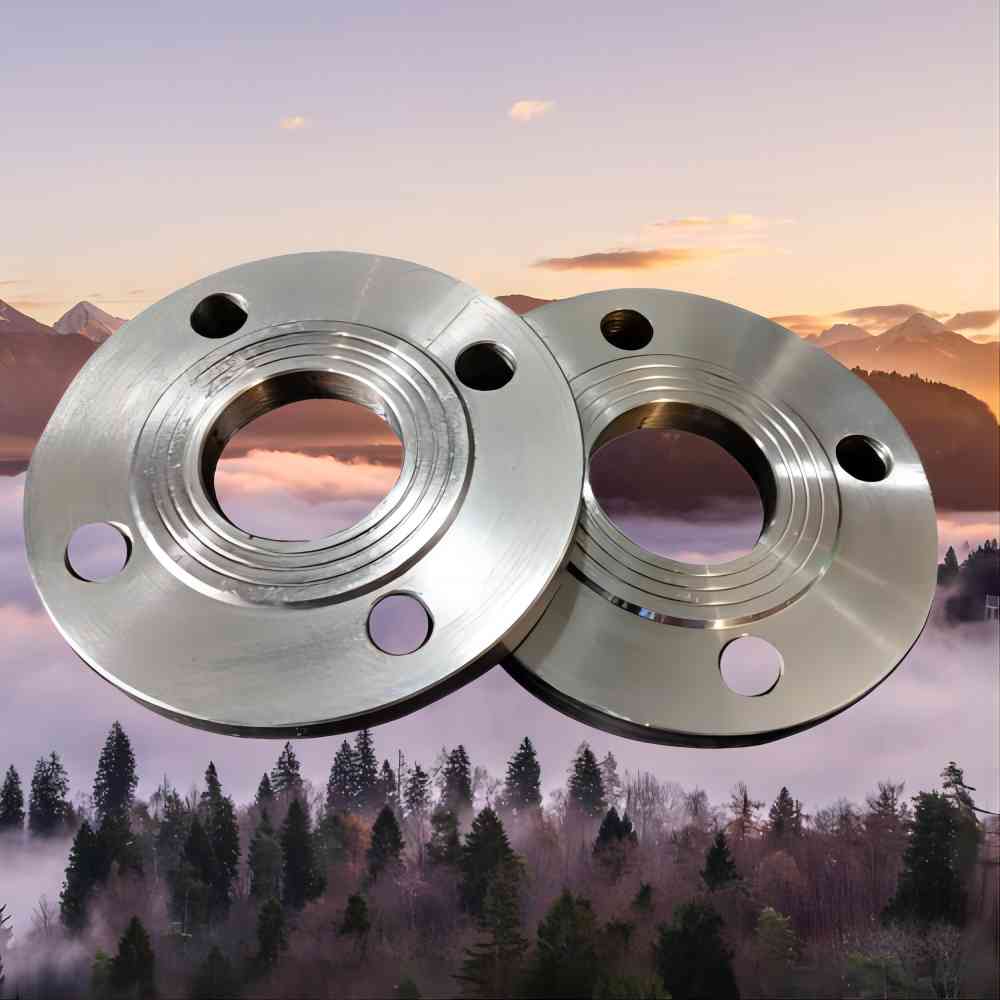

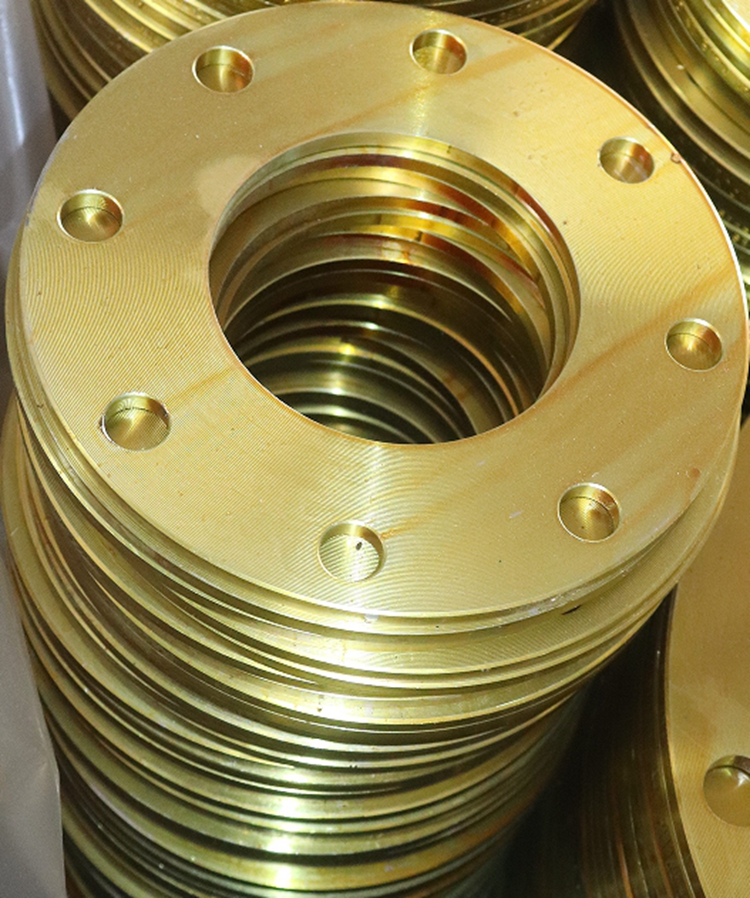

ASME B16.5 Class 150 PN 16 Carbon steel Plate flange for petroleum

ASME B16.5 Class 150 PN 16 Carbon steel Plate flange for petroleum

Product ID : Manufacturer

Product Tags :

Product Attributes :

Product name: ASME B16.5 Class 150 PN 16 Carbon steel Plate flange for petroleum

Place of Origin: Hebei, China

Brand Name: Yuan Jida

Model Number: ASME EN DIN JIS

Standard: ANSI, bs, DIN, GB, ISO, JIS, ASME

Material: Carbon Steel

Type: Plate Flange

Packing: Plywood\wooden Pallets

Size: Customized Size

Surface: Anti-rust Paint

Certificate: ISO9001

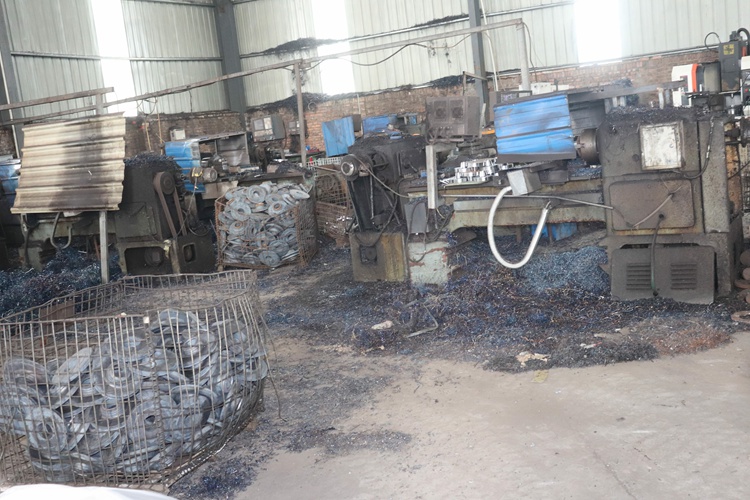

Process: Forging+Machining(if Need)+surface Treatment

Pressure: Class150/300/600/9001500/2500

Product Description

Product Information:

ASME B16.5 Class 150 PN 16 Carbon steel Plate flange for petroleum

Size

Size 1/4” to 24”

Standard

API5L , ASTM A106 Gr.B, ASTM A53 Gr.B,ANSI A210-1996, ANSI B36.10M-2004 , ASTM A1020-2002,ASTM A179-1990 ,BS 3059-2,DIN 17175 ,DIN

1630 ,DIN 2448

Material:

GR.B,ST52, ST35, ST42, ST45,X42, X46, X52, X56, X60, X65, X70,SS304, SS316 etc.

Certificates:

API5L, ISO 9001:2008,SGS, BV,CCIC

Wall thickness:

SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80, SCH100 SCH120, SCH160, XS, XXS

Surface Treatment:

black paint, varnish, oil, galvanized, anti corrosion coatings.

Marking:

Standard marking, or according to your request. Marking Method: Spray white paint

Pipe Ends

Pipe Length

1. Single Random Length and double Random Length.

2. SRL:3M-5.8M DRL:10-11.8M or As clients requested length.

3. fixed length(5.8m, 6m, 12m)

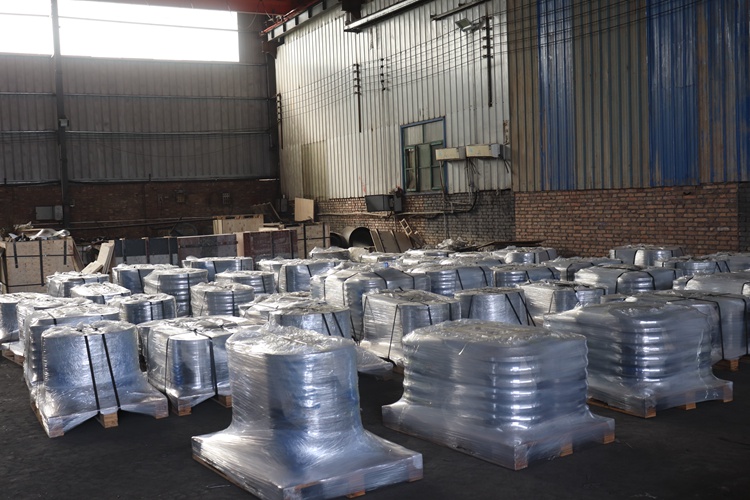

Packaging:

Loose package; Packaged in bundles(2Ton Max); bundled pipes with two slings at the both end for easy loading and discharging; End

with Plastic caps; wooden cases.

Test

Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, hydraulic testing , X-ray

Application

liquid delivery; Structure pipe; High and low pressure Boiler tube; Seamless steel tubes for petroleum cracking; oil pipe; gas pipe.

Delivery Time: 7-15 days

FAQ

Q. Do you accept OEM service?

A: Yes, we do.

Q. Can I get free samples?

A: Yes, And you only need to bear the delivery costs, if the samples are not too big.

Q. Can I have my own Logo on the product?

A: Yes, we're the professional manufacturer, so the OEM service is available.

Q.What information should I let you know if I want to get a quotation?

A: Size, design standard, material, package, Quantities, etc...

Please send us some pictures and designs for checking if possible so we can do best as your request. Otherwise, we will recommend relevant products with details for your reference.
