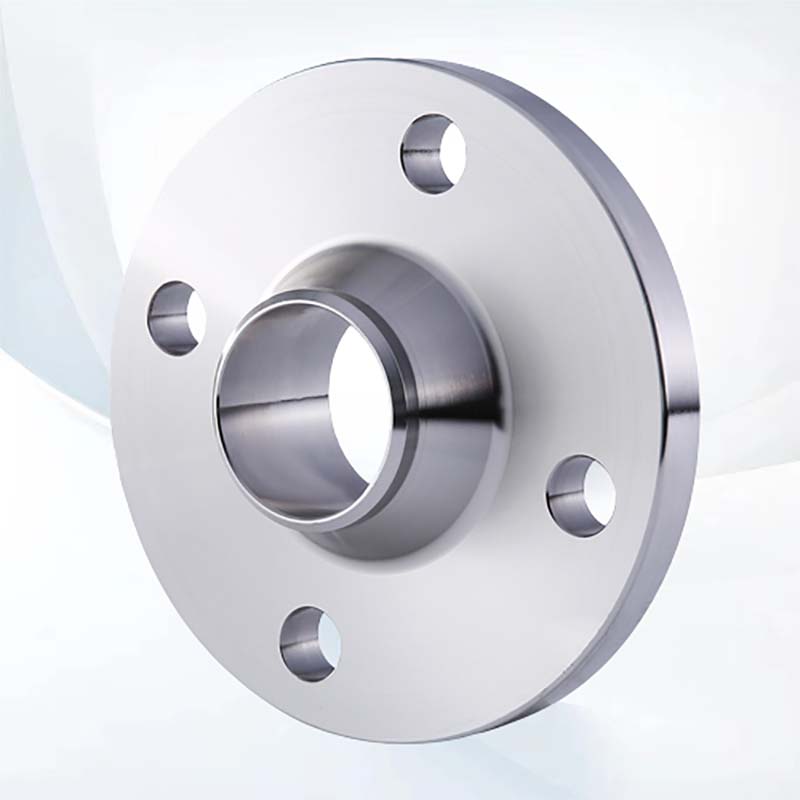

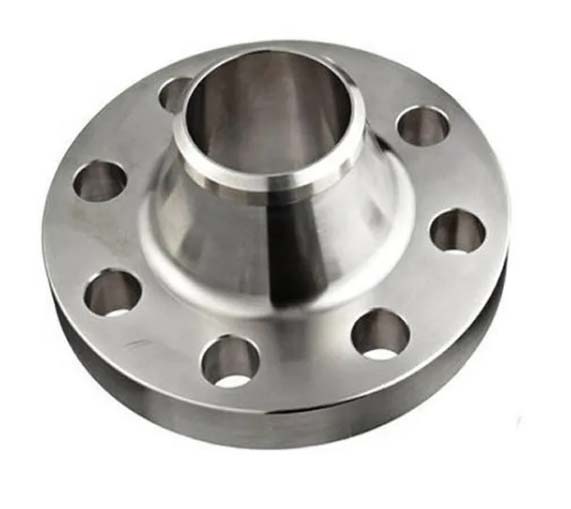

Stainless Steel WN Weld Neck Flange Forged Flange
Stainless Steel WN Weld Neck Flange Forged Flange

Stainless Steel WN Weld Neck Flange Forged Flange

Product ID : weld neck flange
Product Tags : WN Flange
Product Attributes :
Essential details
Place of Origin: Hebei, China
Brand Name: Yuan Jida
Material: stainless steel
Standard: ANSI, DIN, GB, JIS, ASME

Product Description
Steel Flanges


Material

Carbon steel
 ASTM A105. ASTM A350 LF1. LF2, CL1/CL2, A234, S235JRG2, P245GH
P250GH, P280GHM 16MN, 20MN ,20#
Stainless steel
 ASTM A182, F304/304L, F316/316L, 3014H, 316Ti, 310, 310S, 321, 321H, 317, 347
Alloy steel
ASTM A182 A182 F12,F11,F22,F5,F9,F91 etc.



Standard
ANSI
Class 150 Flanges-Class 2500 Flanges
DIN
6Bar 10Bar 16Bar 25Bar 40Bar
JIS
5K Flanges-20K Flanges
UNI
6Bar 10Bar 16Bar 25Bar 40Bar
EN
6Bar 10Bar 16Bar 25Bar 40Bar
Type

plate, threaded, slip-on, socket welding, lap joint, blind, welding neck,Or produce specifically according to pictures/ drawings
Diamension

ANSI B16.5, ANSI 16.47 Series A and B, MSS SP44 ASA, API-605, AWWA and custom drawing.
Surface

Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Connection

Welding, Threaded
Technical

Forged, Casting
Size

DN10-DN3600
Heat Treatment

Normalizing, Annealing, Quenching+Tempering


Pressure

ANSI:150bls-2500bls

DIN/EN/UNI:PN6-PN40

JIS:10K,16K,20K,30K



We are weld neck flange manufacturers, producing weld neck flange, stainless flange, The bore of the flanges matches the bore of the pipe,

thus allowing the undisturbed product flow and reduce turbulence and erosion at the joints.

Factory Information:

Hebei Yuan Jida Group Co., Ltd.is a professional manufacturer of steel  flange Located in the famous

Chinese pipeline equipments Cangzhou City, Hebei Province, China.

The company has and 7 flange production lines.It has a complete set of intermediate frequency elbow hot pusher,

reducer hot die press, three-way cold extrusion hydraulic press, forging hammer, vertical lathe, drilling machine and

other process forming and machining equipment for the production of elbow flange pipe fittings.

The company has many factories to produce different products,such as steel 45 degree elbow, 90 dengree elbo

The company’s main products: flanges(SO ,WN ,Pl ,SW , BL ),  Materials include carbon steel, stainless steel and alloy steel.

Implementation standards include ASME, ANSI, AWWA, DIN, JIS and large industry standards, etc.

Yuan Jida can provide any design of pipe flange  to meet your customized needs.Custom pipe flanges and fittings that meet the most stringent designs are not a problem.
