Size: | DN10-200 | Product Name: | ANSI B16.9/ASTM A234 Wp11 Lr 180 Degree Butt Weld Long Radius Seamless Pipe Fitting Elbow |
---|---|---|---|
Material: | Carbon Steel | Technics: | Forged |
Shape: | Round | Connection: | Welding |
Type: | Elbow | Standard: | ANSI,ASME,DIN,JIC/BSP/NPT/BSPT/SAE/Metric/ORFS |
Color: | Black | ||
High Light: |
Wp11 Lr Long Radius Elbow,Long Radius Elbow DIN,DIN 180 Degree Pipe Fitting |
Product Description
Size | Seamless 1/2" To 24" Welded To 72"(DN8~DN1000) |
Wall thickness | Sch5S-Sch160, XS,XXS(1.2mm~34mm) |
Standards | ANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc |
Material |
Stainless Steel: ASTM A403 WP304, 304L, 310, 316, 316L, 321, 347, 904L Alloy Steel:s31803.s32750.S32760. Temperature: ASTM A420 WPL 1, WPL 3, WPL 6 |
Surface treatment | Sand Rolling, Sand Blasting ,Acid Cleaning. |
Packing | wooden case, pallet or as customers' requirement |
Applications | Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc |
Min order | 1 pieces |
Delivery time | 10 after receipt of advanced payment |
Certificate | ISO 9001-2008, CE. PED,TS |
Productivity | 50000 pieces per year |

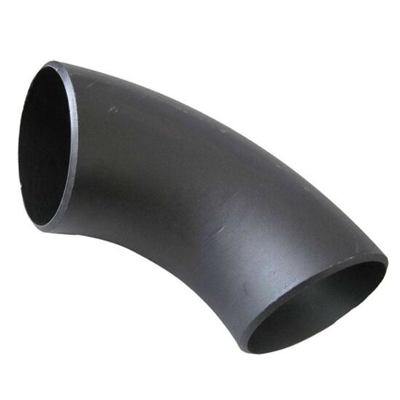

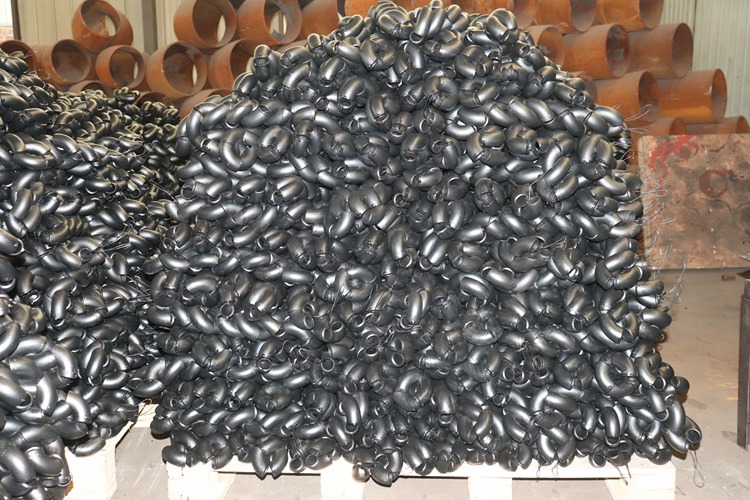

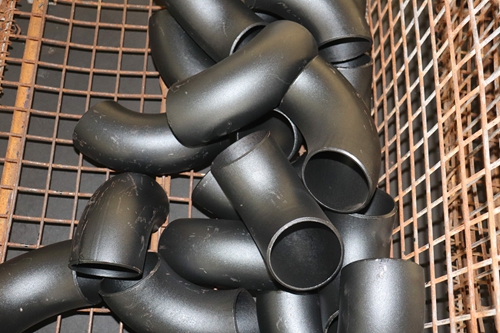

Product Show

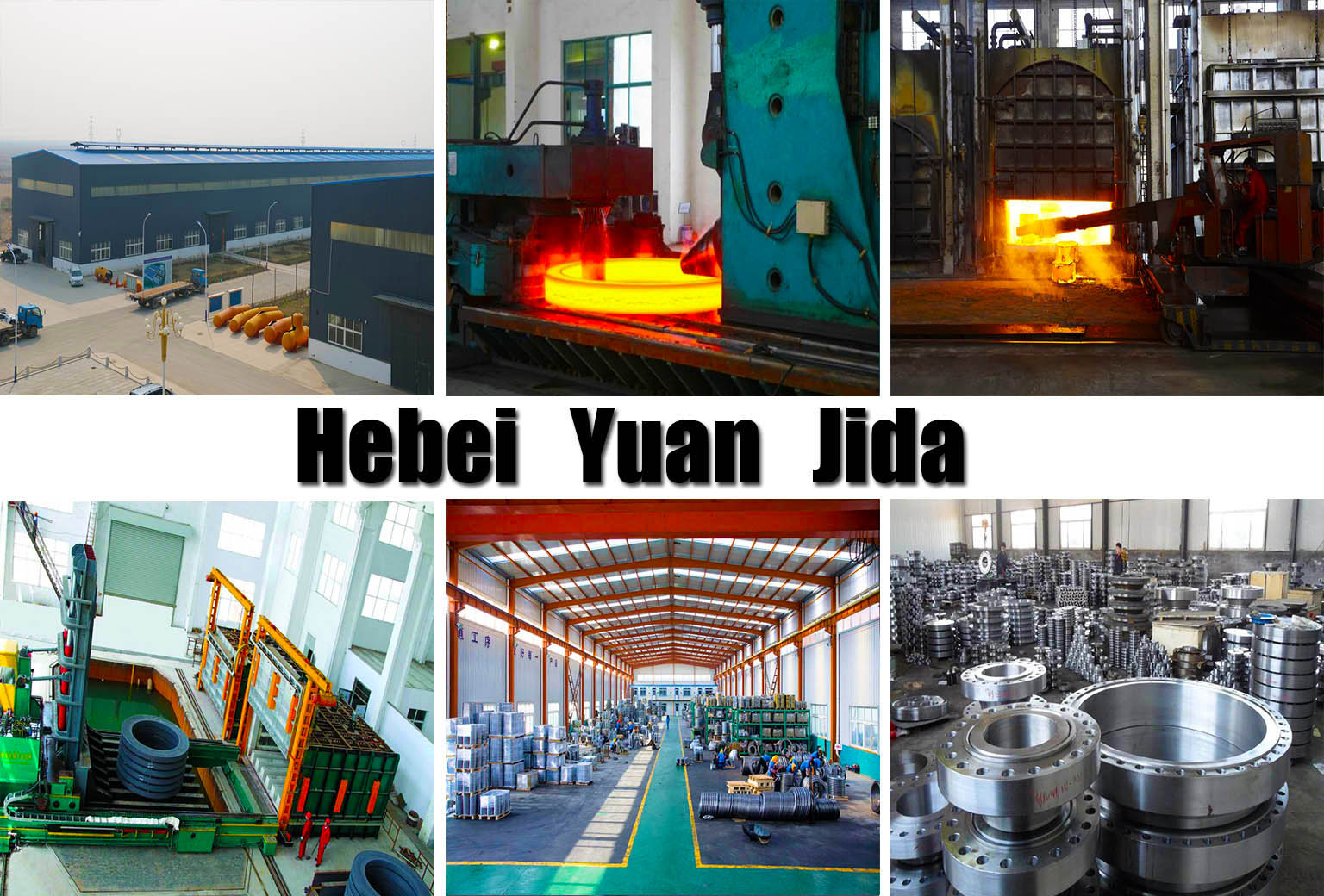

work shop
Hebei Yuan Jida Group Co., Ltd. is a professional manufacturer of steel elbow flange pipe fittings. Located in the famous Chinese pipeline equipment base-Yanshan County, Cangzhou City, Hebei Province, China.
The company has 8 advanced pipe fitting production lines and 5 flange production lines. It has a complete set of intermediate frequency elbow hot pusher, reducer hot die press, three-way cold extrusion hydraulic press, forging hammer, vertical lathe, drilling machine and other process forming and machining equipment for the production of elbow flange pipe fittings, including Φ1020mm large diameter The annual production capacity of medium-frequency hydraulic pushing machine, Φ1420mm large-diameter intermediate-frequency pipe bender, Φ2438mm 4,000-ton large hot mold press is more than 80,000 tons.
