ANSI B16.5 A105 Sch40 Class150 Slip On Raised Face Steel Flange
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | 1-10 Pieces US $3.85/piece; >10 Pieces US $3.26/piece |
| Packaging Details: | Plywood Cases, Pallets, Nylon Bags, Wooden Box |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000000PCS/Year |
| Manufacturing Way: | Forging | Product Name: | Slip On Flange |
|---|---|---|---|
| Standard: | ANSI B16.5 | Type: | Slip On |
| Connection: | Welding | Size: | Sch40 |
| Warranty: | 1 Year | Material: | Stainless Steel |
| High Light: |
Sch40 Slip On Raised Face Flange |
||
Our steel flanges is widely used in automotive, spinning machine, ship building, industrial boiler,
hydralic system, lifting etc. Wide range of Plates in China at best prices from YuanJIDA If you can
not find your application on following main applications, you can send your industry field to our
engineers who will customize better suitable ANSI B16.5 steel flanges for you !
Flange Specifications
| Specifications | Class 150 Flanges |
|---|---|
| ASME B16.5 Class 150 Flange size range | 1/2" (15 NB) to 48" (1200NB) DN10~DN5000 |
| ansi b16.5 Class 150 Flanges Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| ansi b16.5 Class 150 Flange Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| ansi b16.5 Class 150 Flange Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| ansi b16.5 Class 150 Flange Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| ansi b16.5 Class 150 Flange Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| ansi b16.5 Class 150 Pipe Flanges Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
| Production technique |
|

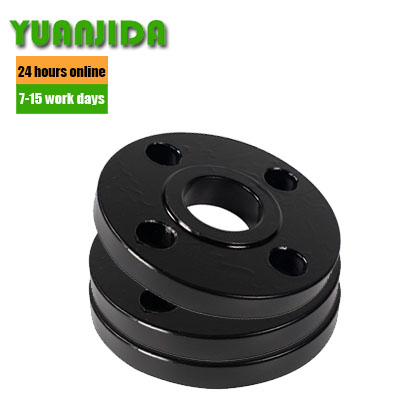

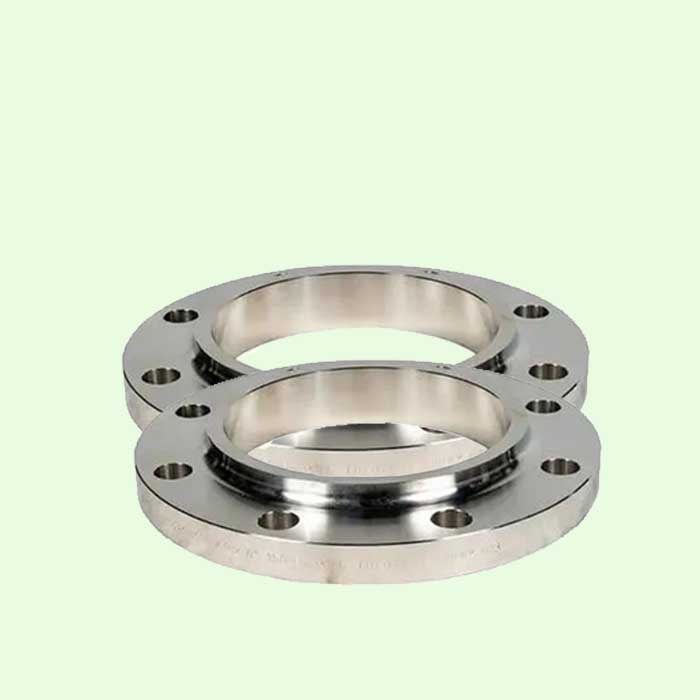

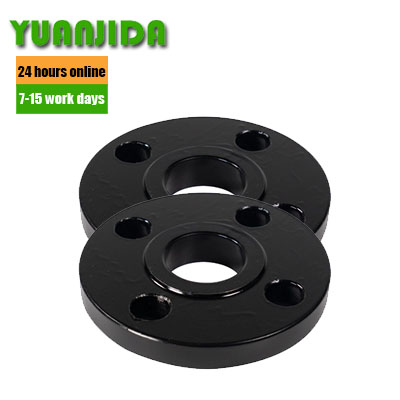

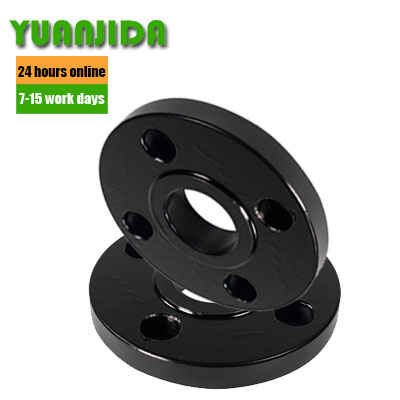

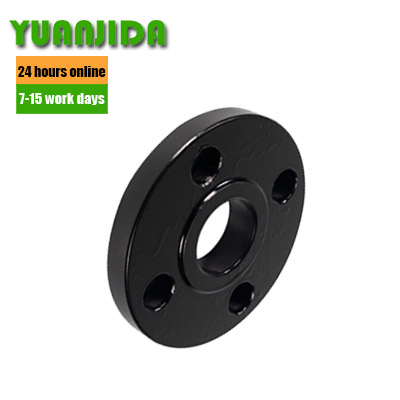

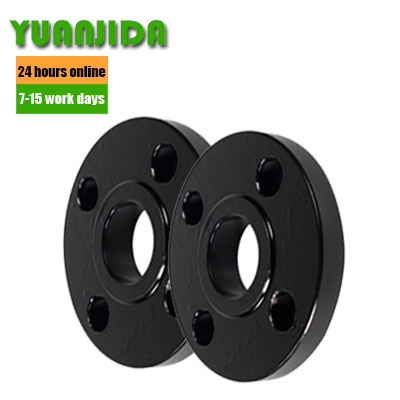

Products Show
Factory Information:
Hebei YuanJida Group is Flange manufacturer.We mainly produce ANSI B16 5,Slip On Flange ,slip on Raised Face flange
and any flange types we could supply it.
Flange is connected pipe with pipe. We produce ss flange,carbon steel flanges,dn65 flanges,galvanized flange,
alloy flange...The flange has rtj ,orifice flange,sorf ,flange plate,reducing flange,slip on flange
welding...We could produce ss flanges as these standards:asme b16 5,astm a182,ansi 150,ansi flange,
b16 5,en 1092,asme b16 47,pn16 flange,Asme B16 47,din2501.
Hebei YuanJida also produce steel elbows,ss elbows, steel tee,pipe fittings and could provide valves,
ball valve,butterfly valve,gate valve. Located in the famous Chinese pipeline equipments Cangzhou
City, Hebei Province, China. Hebei YuanJida Group has 7 flange production linesand 10 advanced
pipe fitting production lines.It has a complete set of intermediate frequency elbow hot pusher,
reducer hot die press, three-way cold extrusion hydraulic press, forging hammer, vertical lathe,
drilling machine and other process forming and machining equipment for the production of flange,steel elbows,pipe fittings.
At the same time, the company is also equipped with a complete set of advanced physical and
chemical testing, non-destructive testing, heat treatment, hydraulic testing and other product
quality testing equipment. Over the years, it has provided a large number of raised face flange
products and services for petroleum, chemical, shipbuilding, medicine, electric power, other
industries and won wide acclaim. It has successively become a designated enterprise of China
National Chemical Engineering Corporation, a designated enterprise of China Classification
Society, a member of the supply network of China Petrochemical Materials and Equipment
Corporation, a member of the supply network of China National Petroleum Corporation,
and a member of the power station accessories supply network of the State Power Corporation.
FAQ:
Q1. Where is your factory ?
A1:Our company’s processing center is located in Cangzhou,HeBei, China.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Hebei Yuan Ji Da Group is a 15 year professional flange manufacturer.
