Product Details:ASME ANSI EN Galvanized Steel Plate Flanges Class 150 1.5 Inch For Machinery
| Place of Origin: | Hebei, China |
|---|---|
| Product Name: | Steel Plate Flanges |
| Certification: | ISO, ABAS, MTC, FORM E Steel Plate Flanges |
| Model Number: | DN15-DN1200 Steel Plate Flanges |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box and pallet or as customer's requirement |
| Delivery Time: | 7-10 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pcs per Month |
| Process: | Forging+machining+heating Treatment | Certificate: | CE,ISO9001 |
|---|---|---|---|
| Pressure: | 150LB | Material: | ASTM A105, A106, ASTM A234 WPB |
| Type: | PL Flange | Inspection: | Factory Or Third Party Assigned |
| Heat Treatment: | Normalizing, Annealing, Quenching Tempering | Connection: | Welding |
| High Light: |
Steel Plate Flanges Class 150,EN Steel Plate Flanges,Galvanized Steel Flange 1.5 Inch |
||

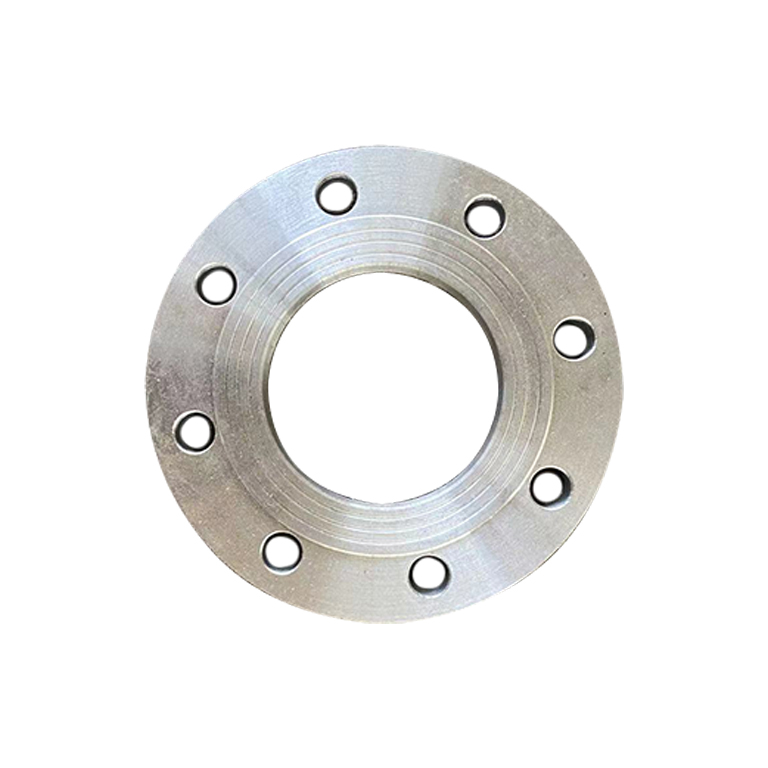

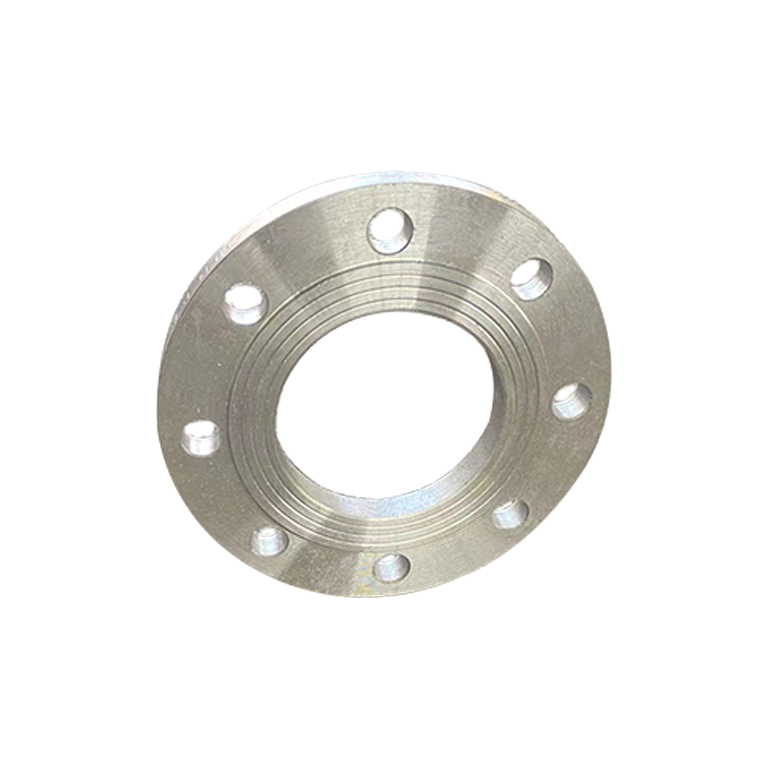

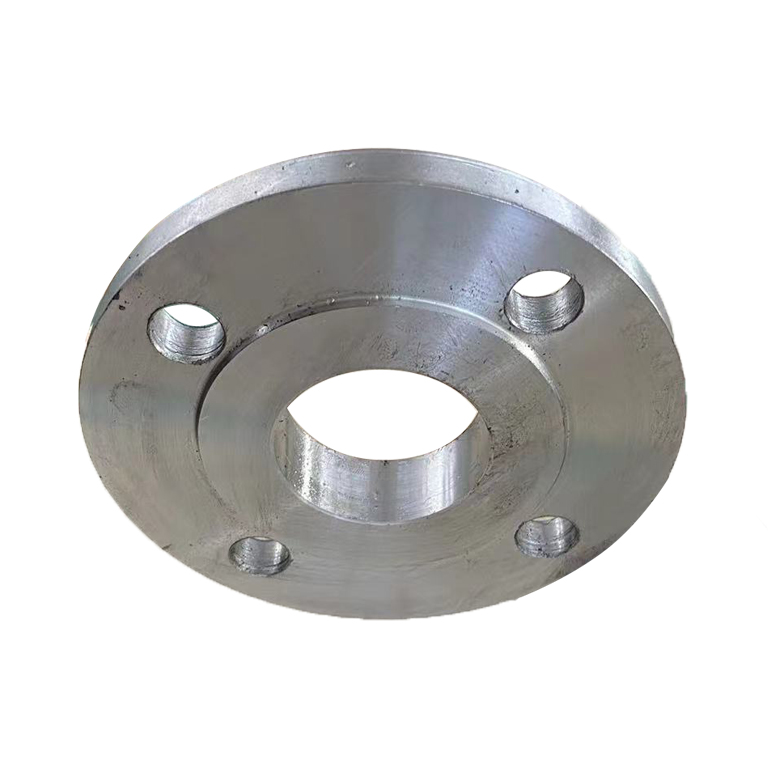

ASME ANSI EN Class150 Metal Flange Pipe Fitting Plate Flange Machinery
Flat welding flanges are suitable for pipeline systems with relatively low pressure levels and no serious pressure fluctuations, vibrations and shocks. The advantage of the flat welding flange is that the flat welding flange is easier to align during welding and assembly, and the price is relatively cheap, so it has been widely used
| Product Name | ASME ANSI EN Class150 Metal Flange Pipe Fitting Plate Flange Machinery | |
| Types | Plate, Welding Neck, Slip on, Blind, Lap joint, Threaded Flange | |
| Face Finish | RF,FF,RTJ,TF,GF | |
| Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
| DIN | DIN 2631 2573 2527 2565 2641 | |
| GOST | GOST 12820-80,GOST 12821-80,Gost Blind | |
| EN | EN1092-1:2002 | |
| JIS | JIS B2220-2004, KS D3576, KS B6216,KS B1511-2007,JIS B2261; JIS B8210 | |
| BS | BS4504,BS10 Table D/E | |
| SABS | SABS 1123 | |
| Material | ANSI | CS A105/SA 105N,SS 304/304L,316/316L Alloy Steel: WHPY45/52/65/80 |
| DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
| GOST | CS CT20;16MN;SS 304/304L,316/316L | |
| EN | CS RST37.2;S235JR;C22.8SS 304/304L,316/316L | |
| JIS | CS SS400,SF440,SS 304/304L, 316/316L | |
| BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
| SABS | CSRST37.2;S235JR;Q235;SS 304/304L,316/316L | |
| Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
| DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| GOST | PN6,PN10,PN16,PN25 | |
| EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| JIS | 1K,2K,5K,10K,16K,20K,30K,40K | |
| BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
| SABS | 600KPA,1000,1600,2500,4000 | |
| Size | ANSI | 1/2” – 60” |
| DIN | DN15-DN2000 | |
| GOST | DN10-DN1600 | |
| EN | DN15-DN2000 | |
| JIS | 15A-1500A | |
| BS | DN15-DN2000 | |
| SABS | DN10-DN600 | |
| Coating | varnish, black paint, anti-rust oil, galvanizing etc | |
| Usage | connection of all kinds of pipeline. to convey the water, steam, air, gas and oil | |
| Package | Wooden cases/pallets | |
| Certificate | ISO9001:2008, CE | |
| Delivery | According to the quantity | |
Test
Before delivery, we will test the product to ensure the quality of the product
Package and delivery
FAQ
1. Q: Who are we?
We are factory of flange and pipe fittings loated in Cangzhou Country,Hebei province, China.
2. Q: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Q: What can you buy from us?
Flange,Forged Fitting,Pipe Fittings
4. Q: Why should you buy from us not from other suppliers?
First of all, we are the factory of flange and pipe fittings, so the quality we can guarantee.
Second We have a professional technical team. Products can be designed according to customer needs.
Third no matter pre-sale or after-sale, we always put the interests of customers first, and consistently provide customers with better services
Hebei Yuan Ji Da Group is a 15 year professional flange manufacturer.
