Minimum Order Quantity: | 1 Piece |
---|---|
Price: | 1-100 pieces US $0.53/ Piece;>100 pieces US $0.41/ Piece |
Packaging Details: | in Wooden Cases or Customers Requirements |
Delivery Time: | 7-15 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 80000 pieces/month |
Standard: | ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME | Technics: | Casting |
---|---|---|---|
Connection: | Welding | Type: | Blind Flange |
Application Area: | Industrial | Wall Thickness Welding Neck: | STD, SCH40, SCH80 |
Coating: | Black Paint, Yellow Transparent Paint, Cold And Hot Dip Galvanize | Packing: | Plywood\wooden Pallets |
High Light: |
blind flange |

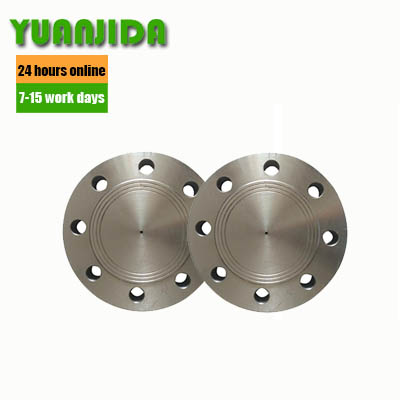

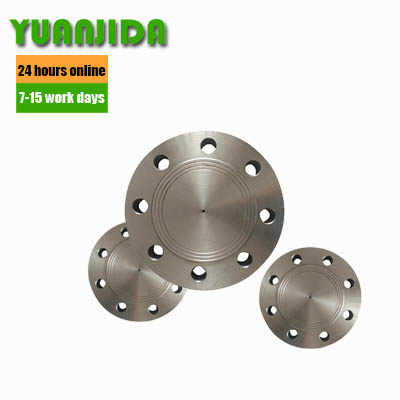

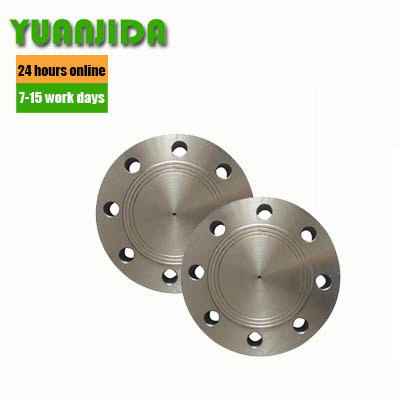

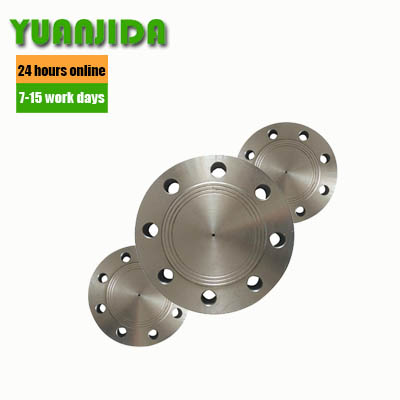

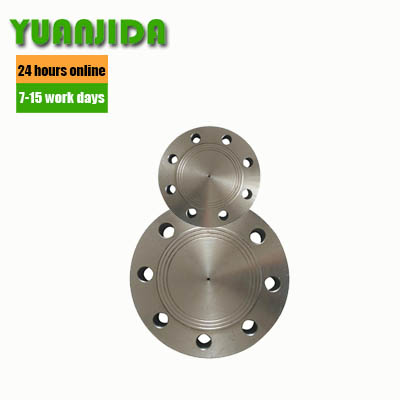

Type | Blind Flange | |
Standard | ANSI | ANSI B16.5 ASME B16.47 series A/B |
GOST | GOST 12820-80/GOST 12821-80/GOST 12822-80/ | |
EN | EN1092-1:2002 | |
JIS | JIS B2220-2004, KS D3576, KS B1511-2007 JIS B2261; JIS B8210 | |
BS | BS4504 BS10 Table D/E | |
Material | ANSI | CS A105/SA 105NSS 304/304L, 316/316L |
DIN | CS RST37.2;S235JR SS 304/304L,316/316L | |
GOST | CS CT20;16MN;SS 304/304L,316/316L | |
JIS | SS400,SF440 SS 304/304L, 316/316L | |
BS | CSRST37.2;S235JR;C22.8;Q235SS 304/304L,316/316L | |
Pressure | ANSI | Class 150, 300, 600, 900, 1500 2500lbs |
DIN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
GOST | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
EN | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
BS | PN6,PN10,PN16,PN25,PN40,PN64,PN100 | |
Size | ANSI | 1/2” – 60” |
DIN | DN15-DN2000 | |
GOST | DN15-DN1600 | |
EN | DN15-DN2000 | |
JIS | 15A-1500A | |
BS | DN15-DN2000 | |
Coating | varnish, yellow paint, anti-rust oil, galvanizing etc | |
Usage | Used for the connection of all kinds of pipeline. |

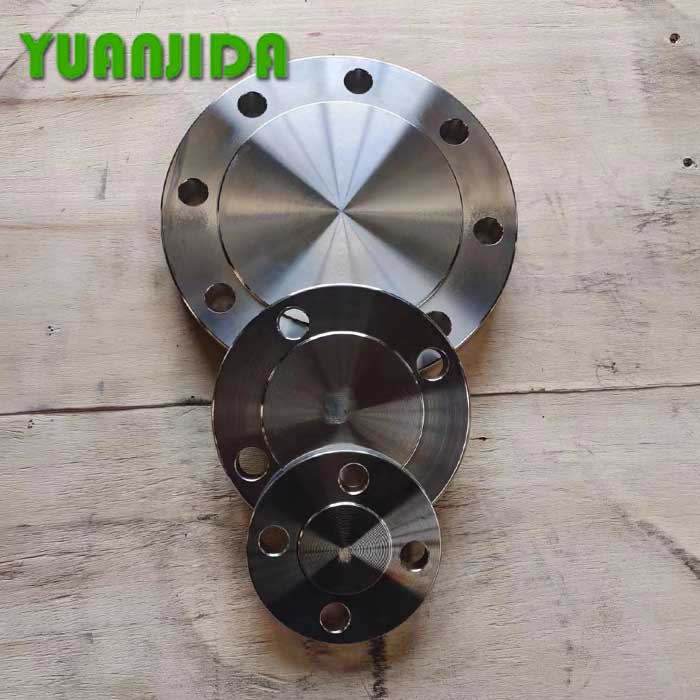

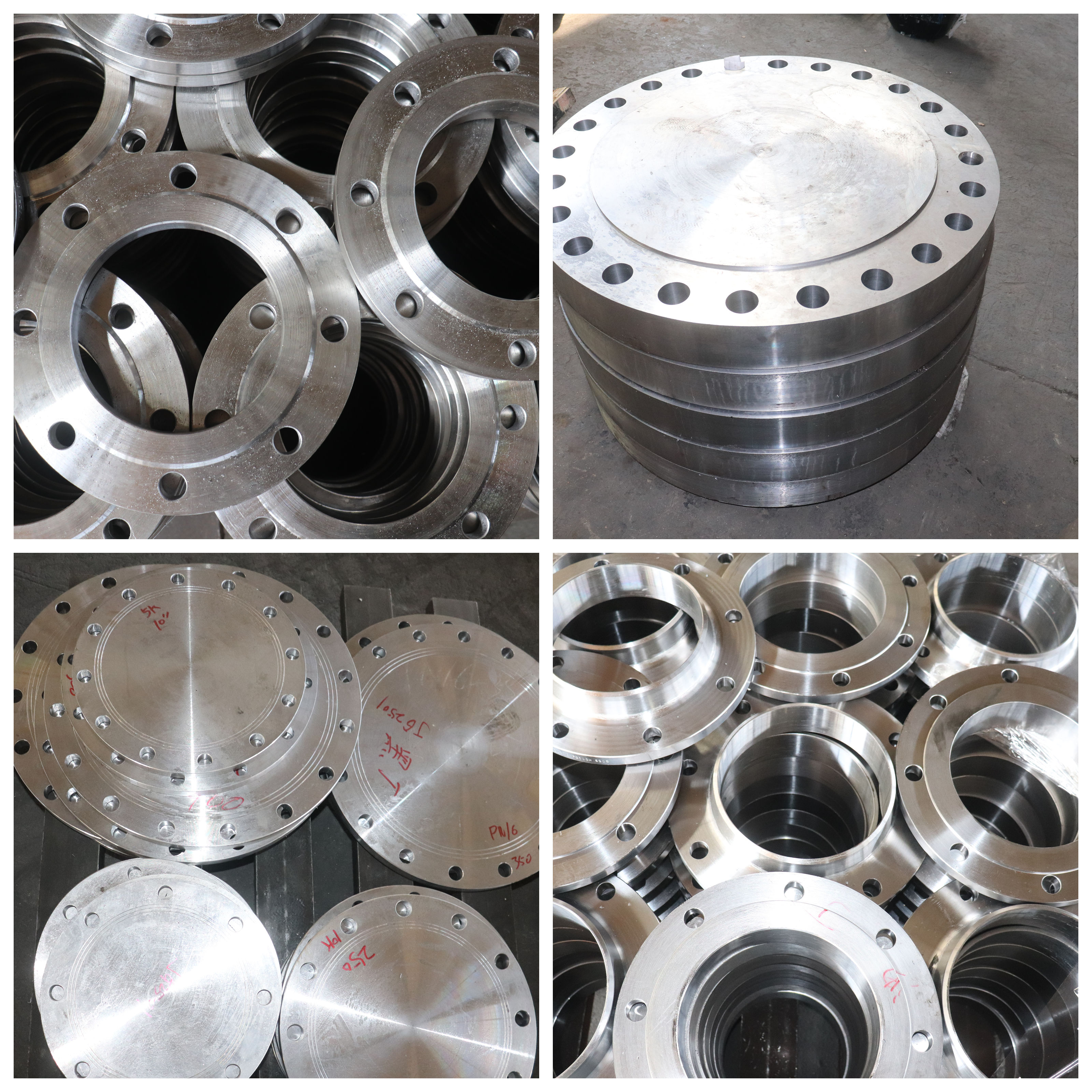

Products Show
Factory Information:
Hebei YuanJida Group is Flange manufacturer.We mainly produce dn 50 BL Flange, puddle flange,so flanges,pipe flange,steel flange,weld neck flange,thread flange,blank flange,loose flange and any flange types we could supply it.
Flange is connected pipe with pipe. We produce ss flange,carbon steel flanges,dn65 flanges,galvanized flange,alloy flange...The flange has rtj flange,orifice flange,raised face flange,sorf flange,flange plate,reducing flange,slip on flange welding...We could produce ss flanges as these standards:A694 F60,asme b16 5,astm a182,ansi 150,ansi flange,b16 5,en 1092,asme b16 47,pn16 flange,Asme B16 47,din2501.
Hebei YuanJida also produce steel elbows,ss elbows, steel tee,Forging steel Blind Flange,pipe fittings and could provide valves,ball valve,butterfly valve,gate valve. Located in the famous Chinese pipeline equipments Cangzhou City, Hebei Province, China. Hebei YuanJida Group has 7 flange production linesand 10 advanced pipe fitting production lines.It has a complete set of intermediate frequency elbow hot pusher, reducer hot die press, three-way cold extrusion hydraulic press, forging hammer, vertical lathe, drilling machine and other process forming and machining equipment for the production of flange,steel elbows,pipe fittings.
At the same time, the company is also equipped with a complete set of advanced physical and chemical testing, non-destructive testing, heat treatment, hydraulic testing and other product quality testing equipment, including direct-reading spectrometers, which provides a reliable guarantee for the production of products. Over the years, it has provided a large number of products and services for petroleum, chemical, shipbuilding, medicine, electric power, other industries and won wide acclaim. It has successively become a designated enterprise of China National Chemical Engineering Corporation, a designated enterprise of China Classification Society, a member of the supply network of China Petrochemical Materials and Equipment Corporation, a member of the supply network of China National Petroleum Corporation, and a member of the power station accessories supply network of the State Power Corporation.
FAQ:
Q1. Where is your factory ?
A1:Our company’s processing center is located in Cangzhou,HeBei, China.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
