Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Piece |
|---|---|
| Price: | 1~100 US $4.12/ Piece >100 US $3.67/ Piece |
| Packaging Details: | Wooden Cases, wooden pallet plastic bag or as customers requirement |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200000T/Year |
| Size: | 1/2" - 24" | Standard: | ANSI, ASME API5L, OCT, DIN And JIS, Etc. |
|---|---|---|---|
| Material: | Carbon Steel | Thickness: | SCH 20- SCH XXS |
| Shape: | Round | Technics: | Butt Welding |
| High Light: |
WPB 50mm To 40mm Reducer,DN250 50mm To 40mm Reducer,Welding DN250 50mm To 40mm Reducer |
||
Reducer Concentric Class #1500, Material A234WPB, SCH160 Size DN250 x DN200 Carbon Steel Pipe Reducer
| Carbon Steel Pipe Reducer Type | Seamless reducer; Welded reducer; Concentric reducer; Eccentric reducer; butt welding reducer; forged reducer; forging reducer; welding reducer; |
||
| Carbon Steel Pipe ReducerSize | OD. | 1/2'' ~ 48''(Seamless); 16'' ~96''(welded); DN15-DN2200 | |
| WTK. | Sch10SCH20,SCH30,STD,SCH40,SCH60,XS,SCH80,SCH100,SCH120,SCH140,SCH160, XXS | ||
| Carbon Steel Pipe Reducer Standard | ASME B16.9-2007 ANSI/ASME B16.11 ASME B16.25-2007 ASME B16.5-2007 EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008 DIN2605-1-1992 DIN2605-2-1995 JIS B2311-2009 JIS B2312-2009 JIS B2313-2009 GB/T12459-2005 GB/T13401-2005 GB/T10752-2005 SH/T3408-1996 SH/T3409-1996 SY/T0609-2006 SY/T0518-2002 SY/T0510-1998 DL/T695-1999 GD2000 GD87-1101 HG/T21635-1987 HG/T21631-1990 , MSS SP-43, MSS SP-95, MSS SP-75, MSS SP-79; ISO 3419,ISO 5251,DIN 2616 |
||
| Pipe Reducer Material | Carbon steel | ASTM A234 WPB, ASTM A420 WPL6, WPL3; ASTM A105 WPB; ASTM A106; ASTM A350 LF2, DIN St37, St45.8, St52.4,St.35.8,St.35.8 ASTM A333 GR.6, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42, API 5L GRB, X60, X65, X42,X52, |
|
| Stainless steel | ASTM A403 WP304, A403 WP304L, A403 WP316, A403 WP316L, A403 WP321 ASTM A182 F 304, 304L,316, 316L,904L |
||
| Alloy steel | ASTM A234 WP12, A234 WP11, A234 WP22, A234 WP5, A234 WP9 A420 WPL8, A420 WPL9 ASTM A335 P5, P9, P11, P12, P22, P91 ASTM A213 ASTM A182 F5,F11,F22,F91 |
||
Concentric Carbon Steel Pipe Reducer:
Dimension (mm)
| Nominal Diameter | Outside Diameter | End to End | ||
| D1*D2 | ||||
| DN | NPS | Series A | Series B | H |
| 20×15 | 3/4×1/2 | 26.9×21.3 | 25×18 | 38 |
| 20×10 | 3/4×3/8 | 26.9×17.3 | 25×14 | 38 |
| 25×20 | 1×3/4 | 33.7×26.9 | 32×25 | 51 |
| 25×15 | 1×1/2 | 33.7×21.3 | 32×18 | 51 |
| 32×25 | 1.1/4×1 | 42.4×33.7 | 38×32 | 51 |
| 32×20 | 1.1/4×3/4 | 42.4×26.9 | 38×25 | 51 |
| 32×15 | 1.1/4×1/2 | 42.4×21.3 | 38×18 | 51 |
| 40×32 | 1.1/2×1.1/4 | 48.3×42.4 | 45×38 | 64 |
| 40×25 | 1.1/2×1 | 48.3×33.7 | 45×32 | 64 |
| 40×20 | 1.1/2×3/4 | 48.3×26.9 | 45×25 | 64 |
| 40×15 | 1.1/2×1/2 | 48.3×21.3 | 45×18 | 64 |
| 50×40 | 2×1.1/2 | 60.3×48.3 | 57×45 | 76 |
| 50×32 | 2×1.1/4 | 60.3×42.4 | 57×38 | 76 |
| 50×25 | 2×1 | 60.3×33.7 | 57×32 | 76 |
| 50×20 | 2×3/4 | 60.3×26.9 | 57×25 | 76 |
| 65×50 | 2.1/2×2 | 73.0×60.3 | 76×57 | 89 |
| 65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 76×45 | 89 |
| 65×32 | 2.1/2×1.1/4 | 73.0×42.4 | 76×38 | 89 |
| 65×25 | 2.1/2×1 | 73.0×33.7 | 76×32 | 89 |
| 80×65 | 3×2.1/2 | 88.9×73.0 | 89×76 | 89 |
| 80×50 | 3×2 | 88.9×60.3 | 89×57 | 89 |
| 80×40 | 3×1.1/2 | 88.9×48.3 | 89×45 | 89 |
Products Show

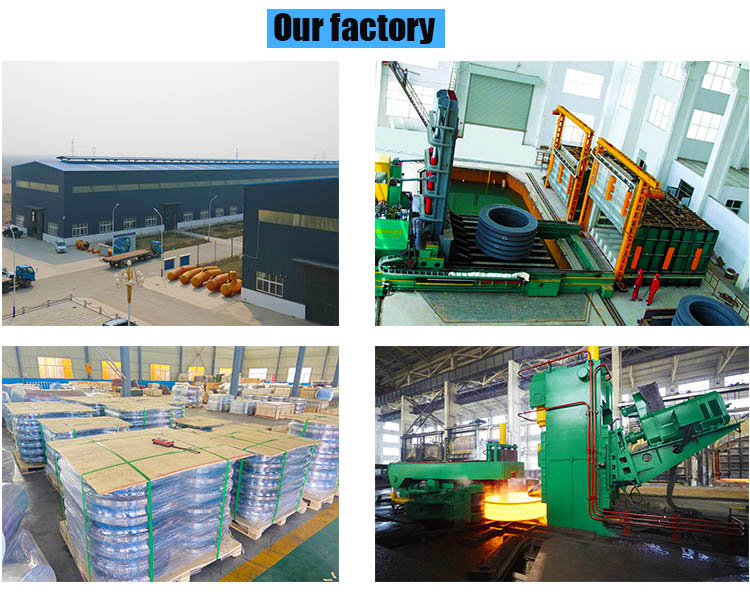

Factory Information:
Hebei Yuan Jida Group Co., Ltd. is a professional manufacturer of steel flange, pipes, fittings and Valves. Located in the famous Chinese pipeline equipments Cangzhou City, Hebei Province, China.
The company has 10 advanced pipe fitting production lines and 7 flange production lines. It has a complete set of intermediate frequency elbow hot pusher, reducer hot die press, three-way cold extrusion hydraulic press, forging hammer, vertical lathe, drilling machine and other process forming and machining equipment for the production of elbow flange pipe fittings.
The company’s main products: flanges(SO flange,WN flange,Pl flange,SW flange, BL flange), elbows, Bends, reducers, tees, crosses, pipe caps and threads, socket series of pipeline components products and valves(gate valve,butterfly valve). Materials include carbon steel, stainless steel and alloy steel. Implementation standards include ASME, ANSI, AWWA, DIN, JIS and large industry standards, etc. Yuan Jida can provide any design of pipe flange and pipe fitting products to meet your customized needs. Custom pipe flanges and fittings that meet the most stringent designs are not a problem.
FAQ:
Q1. Where is your factory ?
A1:Our company’s processing center is located in Cangzhou,HeBei, China.
Q2. How do you control quality ?
A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q3. What are the advantages of your company ?
A3: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Hebei Yuan Ji Da Group is a 15 year professional flange manufacturer.
